Pipeline and trench construction requires precise ground preparation and reliable compaction to ensure long-term stability. Reversible plate compactors are among the most versatile and effective tools for soil compaction. Their ability to work both forward and backward, combined with high compaction performance, makes them indispensable in pipeline installation, trench work, and other civil engineering projects.
Compaction is vital in underground utility and pipeline construction. Poorly compacted soil leads to settlement, pipe misalignment, leaks, and costly maintenance. For trenches and pipelines, achieving uniform density and stable backfill is essential.
Reversible plate compactors are preferred for their versatile efficiency:
- Deliver higher compaction forces than forward plate compactors.
- Operate efficiently in confined spaces.
- Move in both directions for flexibility and productivity.
According to a 2024 report by Global Market Insights, the compaction equipment market is expected to grow at a CAGR of 4.2% through 2030, with reversible plate compactors representing a growing segment due to urban infrastructure and pipeline expansion.
What is a Reversible Plate Compactor?

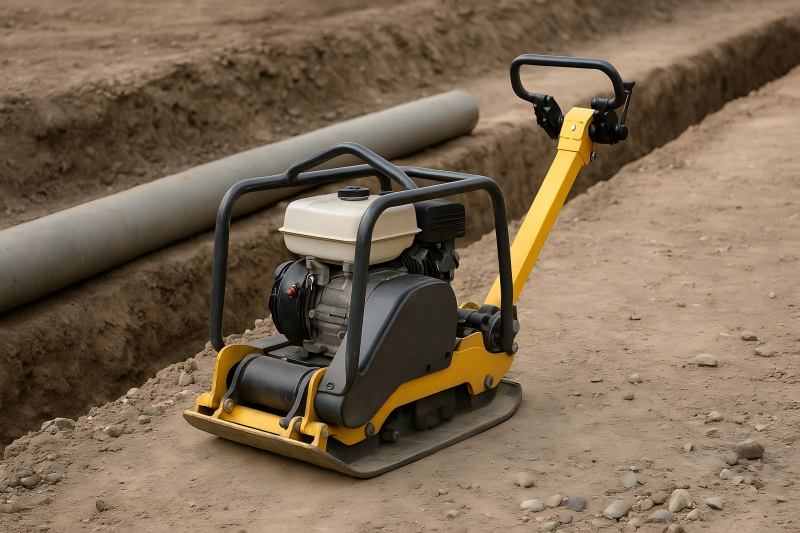

A reversible plate compactor compacts soil, gravel, and asphalt. Unlike single-direction compactors, reversible models can move forward and backward without turning around, making them highly efficient in trenches and narrow spaces.
Key Components:
- Base Plate: A heavy steel plate that transfers vibration energy into the soil.
- Exciter Unit: Generates vibrations through an eccentric shaft.
- Engine: Powers the exciter, usually gasoline or diesel.
- Reversing Control System: Allows forward, reverse, and spot compaction.
Typical Specifications (Medium-Sized RPC):
- Weight: 150–400 kg
- Centrifugal Force: 20–50 kN
- Working Speed: 20–30 m/min
- Plate Size: 500–700 mm wide
Why Reversible Plate Compactors Are Essential in Pipeline and Trench Work
Pipeline and trench construction presents unique challenges. Reversible plate compactors address these challenges effectively:
Confined Space Operation
Trenches are narrow and difficult to navigate with larger compaction equipment like rollers. RPCs are compact, maneuverable, and can compact soil close to trench walls without damaging pipes.
Bidirectional Operation
In trenches, there’s limited room to turn equipment around. RPCs’ ability to operate forward and backward eliminates wasted time and improves efficiency.
Higher Compaction Depth
Compared to forward plate compactors, reversible models deliver stronger vibrations and heavier compaction forces, reaching greater depths (up to 60 cm per pass depending on soil type).
Pipe Bedding and Backfill Stability
Compaction around and above the pipe ensures proper bedding, prevents settlement, and reduces risk of leakage. RPCs are ideal for compacting granular soil types used in backfilling.
Cost Efficiency
RPCs reduce labor requirements and rework caused by poor compaction. A well-compacted trench increases pipeline lifespan, lowering maintenance costs.
Applications of Reversible Plate Compactors in Pipeline and Trench Work
| Application | Role of Reversible Plate Compactor |
| Pipe Bedding Preparation | Achieves uniform compaction before laying pipes. |
| Backfilling Around Pipes | Ensures stable soil compaction without damaging pipes. |
| Narrow Trench Compaction | Efficient in restricted spaces where rollers cannot operate. |
| Asphalt Patch Repair (over trench) | Compacts asphalt layers after trench backfilling. |
| Utility Installation (gas, water, telecom) | Prevents settlement and misalignment of installed utilities. |
Compaction Performance in Different Soil Types
Reversible plate compactors are best suited for granular soils (sand, gravel) and mixed soils. Cohesive soils (clay) may require sheepsfoot rollers, but RPCs can still be effective with multiple passes.
| Soil Type | Compaction Efficiency with RPC | Recommended Passes |
| Sand | High – achieves 95% Proctor density | 2–3 passes |
| Gravel | Very High – excellent interlock | 2–3 passes |
| Mixed Soil | Moderate to High | 3–4 passes |
| Clay | Low to Moderate – may retain water | 4–6 passes |
Case Study: Pipeline Backfilling with RPCs
A municipal water supply project in Southeast Asia used RPCs for trench compaction:
Project Length: 15 km of water pipelines.
Trench Depth: 1.5–2.0 m.
Soil Type: Granular sand and gravel.
Compaction Target: 95% Standard Proctor Density.
Results:
- Achieved required density in 2–3 passes.
- Reduced compaction time by 35% compared to manual tamping.
- Zero cases of trench settlement in 12 months post-installation.
This case highlights how RPCs improve productivity and long-term stability.
Selecting the Right Reversible Plate Compactor for Trench Work
When choosing an RPC for pipeline or trench projects, consider:
Machine Weight
- Lighter models (100–200 kg): Suitable for shallow trenches and light-duty compaction.
- Medium models (200–400 kg): Best for typical utility trenches.
- Heavy models (400–700+ kg): Suitable for wide trenches and deep backfill compaction.
Compaction Force
Measured in kilonewtons (kN).
For trench work: 20–50 kN is typical.
Plate Width
Narrow plates (400–500 mm): Ideal for tight trenches.
Wide plates (600–700 mm): More coverage but less maneuverable.
Soil Type and Depth
Match compactor capability to soil conditions and required compaction depth.
Power Source
- Gasoline: Lightweight, suitable for smaller projects.
- Diesel: More torque and fuel efficiency, suitable for larger trench projects.
Safety Considerations
Operating RPCs in trenches requires attention to safety:
- Vibration Exposure: Limit operator exposure to comply with health regulations.
- Trench Safety: Ensure trench walls are shored or sloped to prevent collapse.
- Pipe Protection: Avoid direct contact between plate and pipe to prevent damage.
- Ergonomic Handling: Use handles and vibration-dampening systems to reduce fatigue.
Market Data: Global Use of RPCs in Pipeline and Trench Work
Based on 2023 Construction Equipment Association data:
| Region | Pipeline & Trench Equipment Market (USD Billion) | RPC Adoption Rate |
| North America | 4.8 | 62% |
| Europe | 3.5 | 70% |
| Asia-Pacific | 6.2 | 78% |
| Middle East & Africa | 1.9 | 55% |
Asia-Pacific leads in adoption due to massive pipeline infrastructure expansion.
Advantages vs. Alternatives
| Equipment | Advantages | Limitations |
| Reversible Plate Compactor | Compact, versatile, bidirectional, good depth compaction | Limited efficiency in cohesive soils (clay) |
| Forward Plate Compactor | Lightweight, cheaper | Single direction only, shallow compaction |
| Rammers | Good for cohesive soils and tight spaces | Smaller coverage area, slower for large trenches |
| Rollers | High productivity, great for large open areas | Not usable in narrow trenches |
Reversible plate compactors play a vital role in pipeline and trench work by ensuring proper compaction, reducing settlement risks, and improving productivity. Their bidirectional movement, adaptability to confined spaces, and high compaction performance make them indispensable in modern utility installation projects.
By selecting the right model, considering soil type and trench dimensions, and applying proper safety measures, contractors can maximize the benefits of RPCs and ensure long-term pipeline reliability.
In a construction landscape where infrastructure quality and durability are critical, reversible plate compactors remain one of the most effective tools for trench and pipeline compaction.
