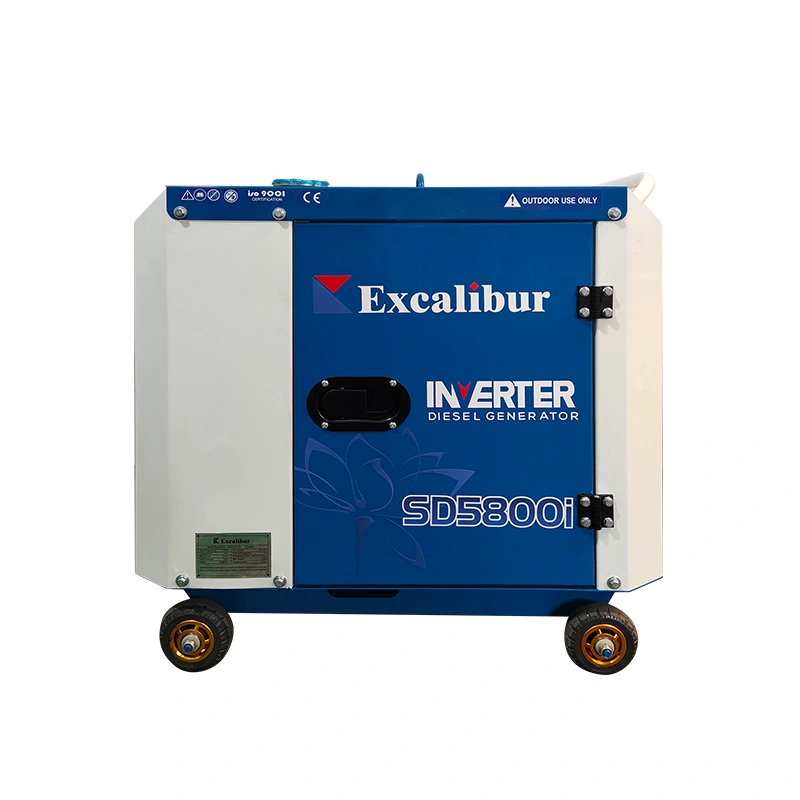

DIESEL INVERTER GENERATOR
1.Diesel fuel efficiency
2.Clean Power Output
3.Easily portable
We provide a 5kva/6kva/8kva/12kva diesel inverter generator, which is designed to be compact and ready to take wherever you need to go. We efficiently provide reliable power with low noise and diesel fuel consumption.

We Have Different Types of Inverter Diesel Generator

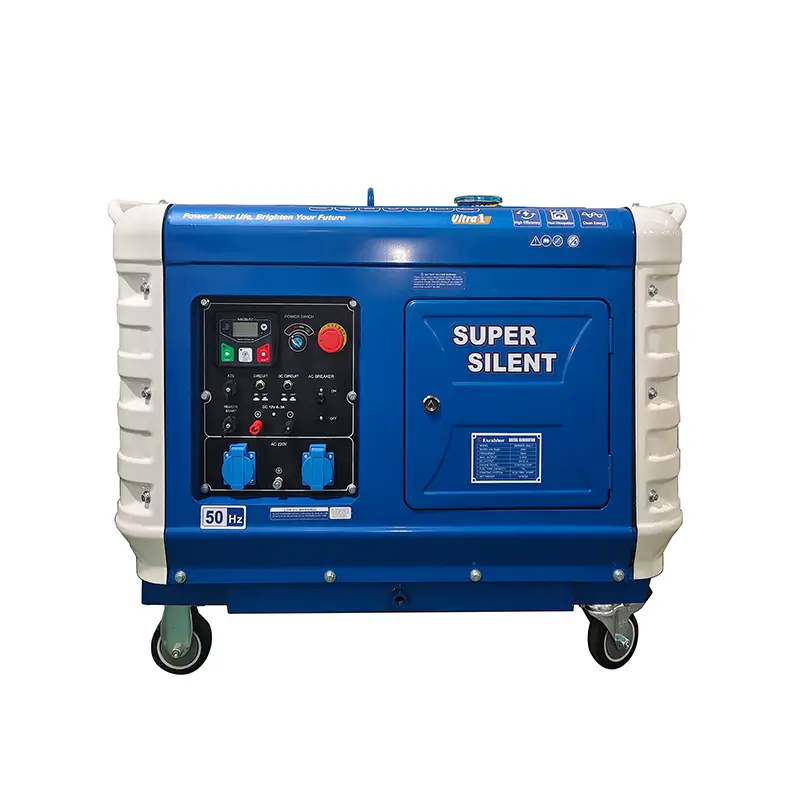

Silent inverter diesel generator

  • Save upto 40% of the fuel
  • Portable in size and weight
  • Less noise 68-75 dB(A)

MODEL

SD8500i/3

Engine

Engne type

SD420FI

Displacement L

0.42

Starter system

Recoll starter,electrc systlem

Generator set

Ratled trequency

50/60 HZ

Prime power

5kW

Standby powor

5.5kW

Rated voltage

230V/380V

DC output

12V-5.0 A

Fuel tank capacity

15L

Cortinucus unring tmc(rated ouput)

9.5h

Noise(urload-ful load)

68-75 dB(A)7m

Dimension(L×WxH)

840×570×700 mm

Net weight

135 kg

Open inverter diesel generator

  • Open structure for easy maintenance
  • High quality-price ratio
  • Ventilatable cooling

Model

SD6800Ei/ 3

SD7800Ei/ 3

SD8800Ei/ 3

SD9800Ei/ 3

SD11600Ei/3

SD11 800Ei/3

SD1 2800Ei/3

SD13800Ei/3

Frequency (Hz)

50 /60

50 /6C

50/60

50 /60

50 /60

50 /60

50 /60

50 /6C

Rated Voltage (V)

220/230/240/380/400/415

Rated Output KW

5.0/5.5

5.5/6.0

6.5/7

7/7.5

8.5

9.5

11

12

Max OutputKW

5.5/6.0

6.0/6.5

7/7.5

7.5/8

9

10

11.5

12.5

DC Output

12V 8.3A

12V 8.3A

12V 8.3A

12V8.3A

12V 8.3A

12V8.3A

12V 8.3A

12V 8.3A

Power Factor

1/0.8

1/0.8

1/0.8

1/0.8

1/0.8

1/0.8

1/0.8

1/0.8

Noise Level (7m)db(A)

77

77

77

85

85

86

83

84

Engine Model

S186FAE

S188FBE

S192FE

S195FE

S1100FE

S1105F

SV288FE

SV292FE

Engine Type

V-Twin Cylinder,4 Stroke,Air-Cooled,Direct Injection

V-Twin Cylinder, 4 Stroke, Air-Cooled, Direct Injection

Bore*Stroke (mm)

86*72

88*75

92*75

95*75

100*85

105*88

2-88*75

2-92*75

Displacement (cc)

418

456

498

531

667

762

912

997

Fuel Type

0#Diesel(Summer),-10#Diesel(Winter),-35#Diesel(Very cold)

Fuel Tank Capacity (L)

12.5

12.5

12.5

12.5

12.5

12.5

25

25

Starting System

Electric start

Net Weight (kg)

82

84

91

92

120

140

180

185

Packing Size (L*W*H)mm

685*510*690

790*560*660

860*560*720

760*660*900

Alternator Type

Permanent Magnet Alternator

The Different Types of Applications of Diesel Powered Inverter Generator

Diesel inverter generator for home

They provide a dependable source of backup power during electrical outages, ensuring continuous operation of essential appliances and devices in a home.

Diesel inverter generator for rv

As Portable Power for Travel, they provide a compact and efficient power source for appliances and electronics on the go.

Marine diesel inverter generator

They can supply electricity for lighting, navigation systems, refrigeration, and other electrical equipment on boats and yachts.
Jiangsu Excalibur Power Machinery Co.,Ltd. was founded in November 2014 (be referred as “Excalibur”), we are an expert special-ized in manufacturing: Engines,Generators,Water Pumps Light construction equipmentsGardon and Agriculture machinery.
