In the world of concrete construction, achieving high compaction and density is critical for strength, durability, and surface finish. Whether you’re working on foundations, columns, slabs, or beams, eliminating air pockets in freshly poured concrete is a key step. That’s where poker vibrators come into play. Also known as internal vibrators, these tools are essential for modern concrete placement.
What Is a Poker Vibrator?
A poker vibrator, also called a needle vibrator or internal concrete vibrator, is a construction tool used to compact concrete by inserting a vibrating probe (or poker) directly into the freshly poured mixture. The vibration it generates causes concrete particles to realign, thereby reducing air voids and increasing the density of the mix.
Alternate Names:
- Internal vibrator
- Needle vibrator
- Immersion vibrator
- Concrete poker
Purpose:
- Remove entrapped air
- Improve compaction
- Increase concrete strength
- Enhance bonding with rebar
- Minimize honeycombing and surface defects
How Does a Poker Vibrator Work?
A poker vibrator works by inserting a metal vibrating probe (typically 25–60 mm in diameter) into wet concrete. The probe contains an eccentric rotating weight that produces high-frequency vibrations, usually around 12,000–16,000 vibrations per minute (vpm). These vibrations travel through the concrete, liquefying it momentarily to help aggregate particles settle and compact.
The Basic Process:
- The formwork is filled with freshly mixed concrete.
- The operator inserts the poker into the concrete vertically.
- The probe sends rhythmic pulses into the nearby concrete mass.
- Bubbles travel to the top and exit the mix.
- After a few seconds (usually 5–15), the poker is slowly withdrawn.
Scientific Principle:
Poker vibrators utilize the principle of mechanical vibration to reduce inter-particle friction and allow the concrete mix to settle into a denser configuration. This is called internal compaction.
Main Components of a Poker Vibrator
A typical poker vibrator consists of the following key parts:
| Component | Description |
| Poker Head (Needle) | A steel tube housing the eccentric weight. Inserted directly into concrete. |
| Flexible Shaft | Transmits torque from the motor to the poker head. Often reinforced with steel braiding. |
| Drive Unit (Motor) | Powers the vibrating head. Can be electric, petrol, diesel, or pneumatic. |
| Handle/Grip | Ergonomic control for the operator. May include on/off switch or throttle. |
| Power Cable/Hose | Connects to the external power source. Designed for durability and flexibility. |
Types of Poker Vibrators
Poker vibrators come in different configurations based on their power source and intended application, offering flexibility for various jobsite needs.
Electric Poker Vibrator
- Uses an electric motor (220V or 110V) to power the probe.
- Ideal for indoor or stationary use.
- Available in high-frequency (built-in motor) and low-frequency (external motor) models.

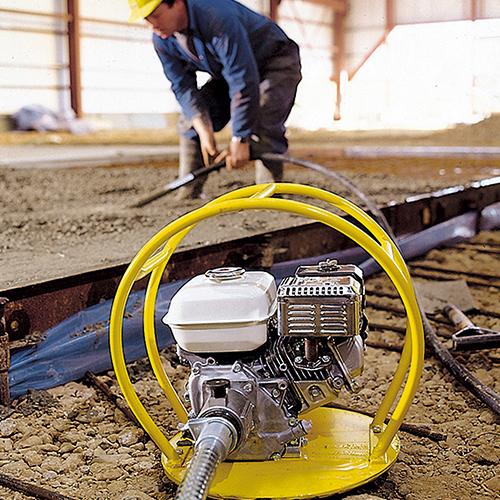

Petrol or Diesel Engine Poker Vibrator
- Powered by internal combustion engines.
- Suitable for remote locations without electricity.
- High torque and mobility.
Pneumatic Poker Vibrator
- Operates using compressed air.
- Common in mining and industrial environments.
- Intrinsically safe for explosive atmospheres.
High-Frequency Vibrator with Converter
- Uses an external frequency converter (from 50/60 Hz to 200 Hz).
- Enables higher vpm for faster, more effective compaction.
- Widely used in commercial and civil infrastructure projects.
Common Sizes and Specifications
Here’s a table of commonly available sizes and specs:
| Needle Diameter (mm) | Typical Length (mm) | Vibrations/Min (vpm) | Power Option |
| 25 mm | 300–400 | 12,000–16,000 | Electric |
| 38 mm | 350–450 | 12,000–16,000 | Petrol |
| 45 mm | 400–500 | 12,000–16,000 | Diesel |
| 60 mm | 500–600 | 12,000–16,000 | Electric/Petrol |
Smaller diameters are used for narrow sections and thinner forms, while larger diameters suit mass concrete pours.
Applications of Poker Vibrators
Poker vibrators are used in nearly all types of concrete work where structural integrity and surface finish are crucial.
Key Applications:
- Concrete foundations and footings
- Bridge decks and piers
- Slabs, beams, and columns
- Retaining walls and abutments
- Precast concrete molds
- Tunnels and underground structures
- Dams and reservoirs
- Road pavements and airport runways
Benefits of Using a Poker Vibrator
Using a poker vibrator correctly offers numerous structural and operational benefits:
- Increased compressive strength of concrete
- Improved bonding with embedded steel (rebar)
- Prevention of honeycombing and segregation
- Smoother finish with fewer surface defects
- Reduction in porosity, leading to longer service life
- Compliance with international concrete compaction standards (ACI, BS, ISO)
Difference Between Poker Vibrator and Pencil Vibrator
Though often confused, poker vibrators and pencil vibrators are not the same.
| Feature | Poker Vibrator | Pencil Vibrator |
| Diameter | 25–60 mm | < 20 mm |
| Application | General concrete compaction | Thin walls, precast parts, repair |
| Power | Petrol, Electric, Pneumatic | Typically electric |
| Durability | Heavy-duty | Light-duty |
| Area Coverage | Large | Small, precise areas |
So, while all pencil vibrators are a subset of poker vibrators, not all poker vibrators are suitable for precision work that pencils handle.
Best Practices for Using Poker Vibrators
To get the best results, follow these operational tips:
Insertion Technique
Insert the vibrator vertically to reduce air entrapment.
Do not drag or move horizontally during use.
Vibration Duration
Keep vibrator in place for 5–15 seconds per insertion.
Withdraw slowly to allow concrete to close behind the needle.
Spacing
Place insertions at 300–500 mm intervals.
Overlap zones of influence to avoid air pockets.
Formwork Care
Keep the vibrator away from formwork and rebar to avoid potential damage.
Cleaning and Maintenance
Clean the needle and shaft after each use.
Check for cable wear and loose fittings regularly.
Maintenance and Troubleshooting
Routine maintenance extends the life of your poker vibrator and ensures consistent performance.
Daily Maintenance:
- Wipe down the shaft and needle
- Inspect power cord and connections
- Check oil levels (if engine-driven)
Weekly Maintenance:
- Lubricate moving parts (if applicable)
- Tighten screws and bolts
- Test vibration frequency
Troubleshooting Table:
| Issue | Possible Cause | Solution |
| Low vibration | Worn eccentric weight | Replace internal parts |
| Overheating | Continuous use | Allow cooling breaks |
| No vibration | Loose connections | Check power cable and shaft |
| No startup | Faulty switch or motor | Replace switch or repair motor |
Buying Tips: How to Choose the Right Poker Vibrator
When selecting a poker vibrator, consider the following:
- Project scale – Residential vs. commercial
- Concrete volume – Larger projects need higher frequency and durability
- Power availability – Choose electric for indoors, petrol/diesel for remote
- Shaft length – Ensure it reaches the bottom of the formwork
- Diameter compatibility – Match the needle size to form and rebar spacing
- After-sales support – Look for manufacturers with strong service networks
A poker vibrator is a fundamental piece of equipment in concrete construction, helping to ensure the structural strength and durability of any concrete pour. By applying high-frequency vibrations directly into the mix, it removes air bubbles, aligns aggregate, and enhances bonding between materials.
