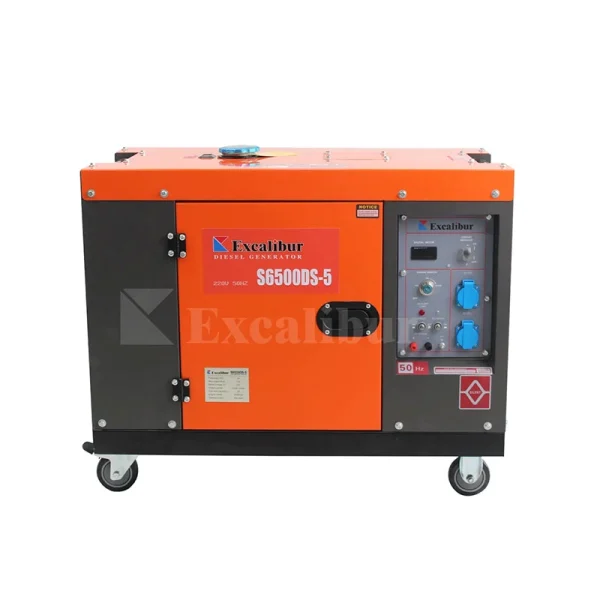

Model:
| Model | S3500DS-1-8/ S3500DS3-1-8 |
S6500DS-1-8/ S6500DS3-1~8 |
S7500DS-1-8/ S7500DS3-1-8 |
S8500DS- 1-8/ S8500DS3-1-8 |
S9500DS-1-8/ S9500DS3-1-8 |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Voltage (V) | 110/115/120/220/230/240/380/400/415/420 | ||||
| Rated Output KW | 2.8 /3.0 | 4.5/5.0 | 5.0/5.5 | 6.0/6.5 | 6.5/7 |
| Max OutputkW | 3.0 /3.3 | 5.0/5.5 | 5.5/6.0 | 6.5/7.0 | 7/7.5 |
| DC Output | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A |
| Power factor | 1/0.8 | 1/0.8 | 1/0.8 | 1/0.8 | 1/0.8 |
| Noise Level (7m)db (A) | 72 | 72 | 72 | 72 | 72 |
| Engine model | S178FE | S186FAE | S188FBE | S192FE | S195FE |
| Engine Type | Single Cylinder,4 Stroke, Air-Cooled,Direct Injection | ||||
| Bore*Stroke (mm) | 78*62 | 86*72 | 88*75 | 92*75 | 95*75 |
| Displacement (cc) | 296 | 418 | 456 | 498 | 531 |
| Fuel Type | 0#Diesel (summer);-10#Diesel (winter),-35#Diesel (Very cold) | ||||
| Fuel Tank Capacity (L) | 20 | 20 | 20 | 20 | 20 |
| Starting System | Electric Start | Electric Start | Electric Start | Electric Start | Electric Start |
| Net Weight (kg) | 122 | 141 | 143 | 151 | 150 |
| Regular Series Packing Size (L*W*H)mm |
950*530*700 | 950*530*700 | 950*530*700 | 950*530*700 | 950*530*700 |
| Pro Series Packing Size(L*W*H)mm | / | / | / | / | / |
| Motor core length and diameter(mm) | 190*85 | 190*132 | 190*140 | 204*130 | 204*148 |
| Standard Features | ○ optional,● Standard configuration | ||||
| Oil Protector | ● | ● | ● | ● | ● |
| 4×4” Wheels | ● | ● | ● | ● | ● |
| ATS | ○ | ○ | ○ | ○ | ○ |
| ATS Suitable Model | EX-ATS-001,EX-ATS-002,EX-ATS-003 | ||||
| Digital Meter | ○ | ○ | ○ | ○ | ○ |
| Remote Start System | ○ | ○ | ○ | ○ | ○ |
| USB Output USB | ○ | ○ | ○ | ○ | ○ |
| Lighter Output | ○ | ○ | ○ | ○ | ○ |
